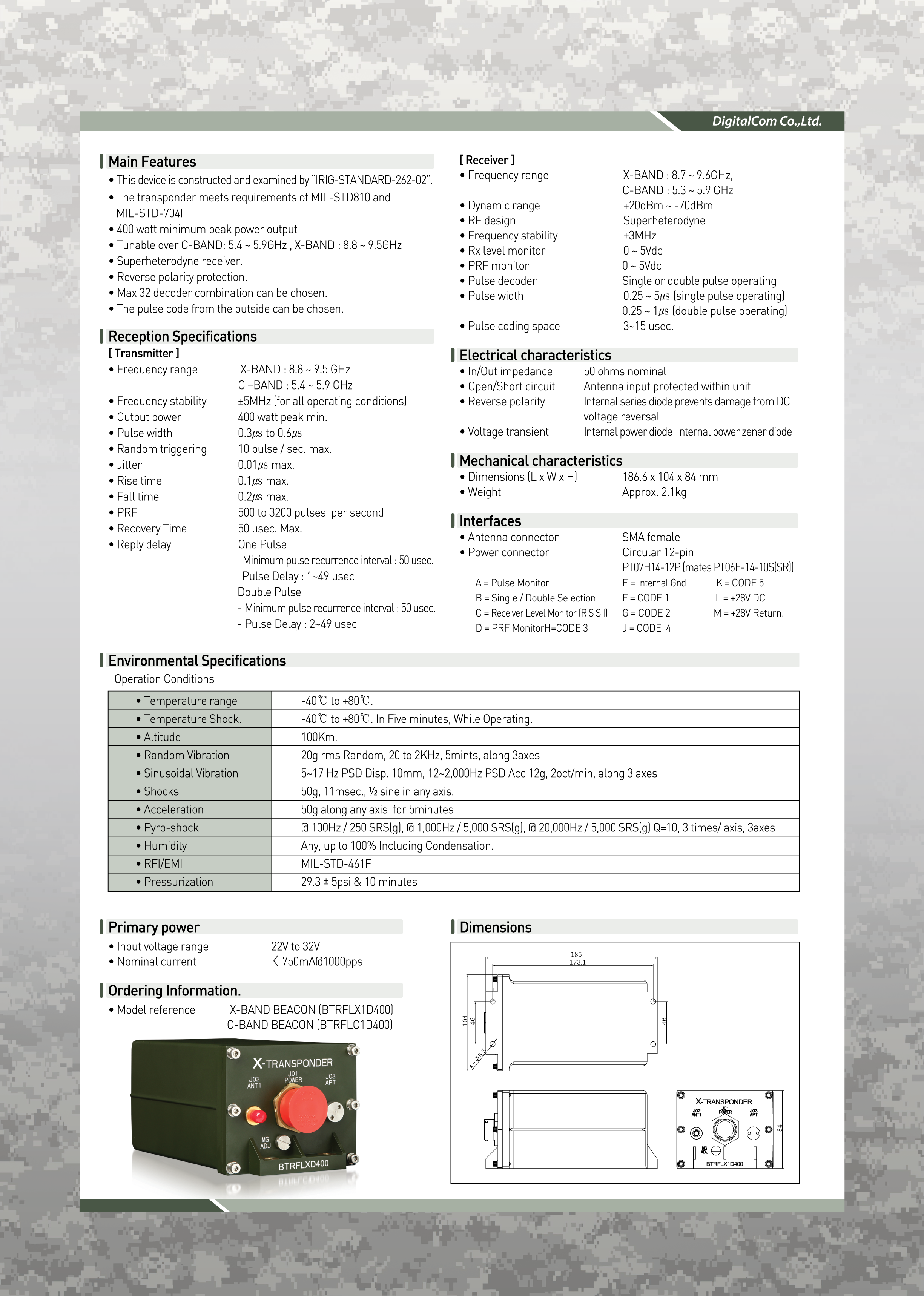

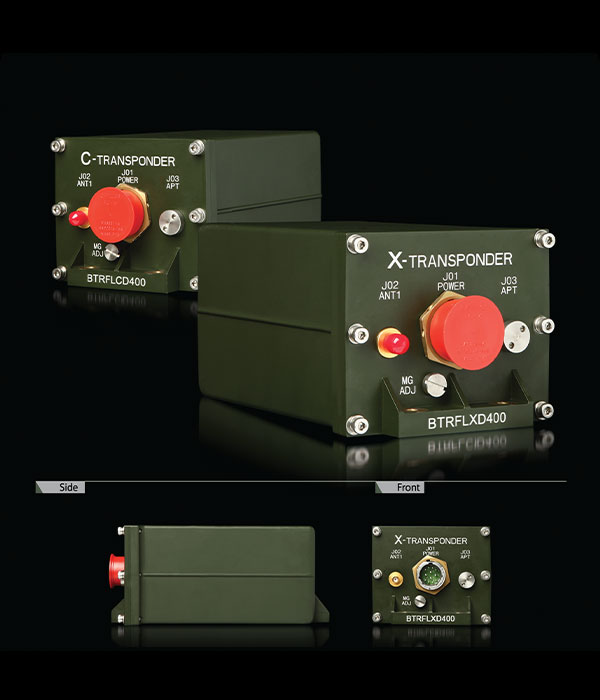

BTRFLX(C) 1D400

Name

BTRFLX(C) 1D400

Features

Compilant with IRIG-STANDARD-262-02
Compilant with MIL-STD810 and MIL-STD-704F
400W minimum peak power output
Tunable over:
C-band: 5.4 ~ 5.9GHz ,
X-band: 8.8 ~ 9.5GHz
Superheterodyne receiver
Reverse polarity protection
Max. 32 decoder combination available
The pulse code from the outside can be chosen
Programmable decoder
